Lexical Tools

Flow Setup Dialog

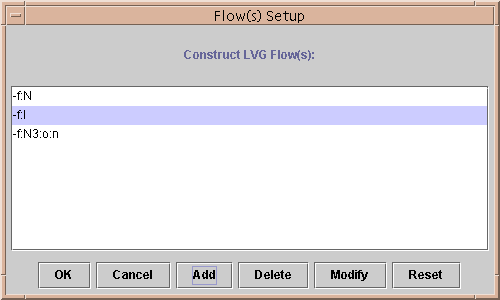

As shown above, this dialog contains a list to display the current flow(s) and six control buttons:

  • Ok: save the current flow setup and then close the dialog
  • Cancel: reset flow to its original setup and then close dialog
  • Add:

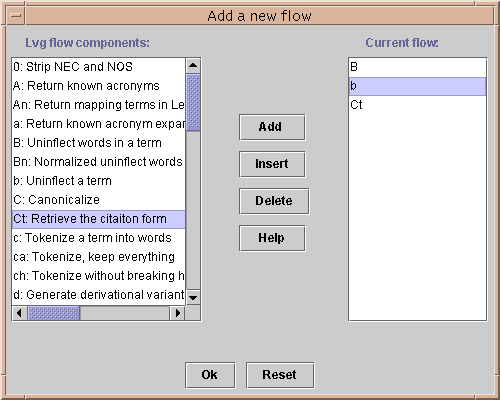

    Popup a dialog (as shown below) for users to add flow(s).

  • Delete: delete the selected (highlighted) flow.
  • Modify:

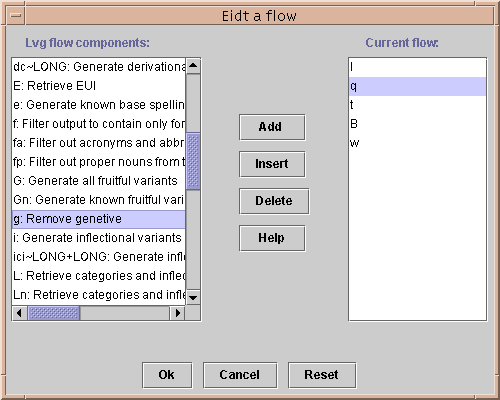

    Popup a dialog (as shown below) for users to modify the selected (highlighted) flow.

  • Reset: set the current flows to none.
