Design Architecture

There are two major components in the Lexical tools. They are:

1. Front End Graphics Users Interface:
   This component is developed using Java Swing 1.3.1.

2. Back End Lexical Logic Processes:
   This component using lvg.2003 APIs.

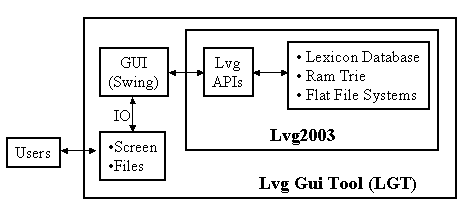

The architecture design is shown in the diagram below.

There are 5 directories in the lvg GUI Tool package and is detailed in the Java files repository.
