SPT - Terms Trie Tree Design

I. Introduction
The next two sections are used to find all multi-words/terms in a given term match terms from a list of terms. A retrieve algorithm (Trie) is applied for this purpose.

II. Trie Algorithm

• Trie Node:
  • Trie nodes are used to compose the Trie tree.
  • Each node has a key, which is a (single) word
  • Each node has a level, the top (root) level is 0
  • Each node has a child, which is a Vector<TrieNode>

  • Use "$_ROOT" for the word of root node
  • Use "$_END" for the word of end node

• Trie Tree:
  • Each branch (path) starts from root node to the end node is a term
  • All terms are stored in the branch of the Trie tree

  • Tokenize input term into words
  • Go through each word:
    • curNode starts from the top (root) node
    • Init curWordNode by curWord
    • Check if Childs contains curWordNode
      • if yes, update curNode to the matched node in Childs
      • If no, add curWordNode to Childs and update curNode to curWordNode

III. Java Classes

• TrieNode.java: a Java object for TrieNode
• TrieTree.java: a Java class for TrieTree

IV. Examples

• Synonym Rules:

  word	synonym
  dog	canine
  cat	feline
  canine	K9
  K9	bull dog
  Dog and cat	pets
  puppy and kitty	pets

• Synonym Terms:

  Terms
  dog
  canine
  cat
  feline
  k9
  bull dog
  dog and cat
  pets
  puppy and kitty

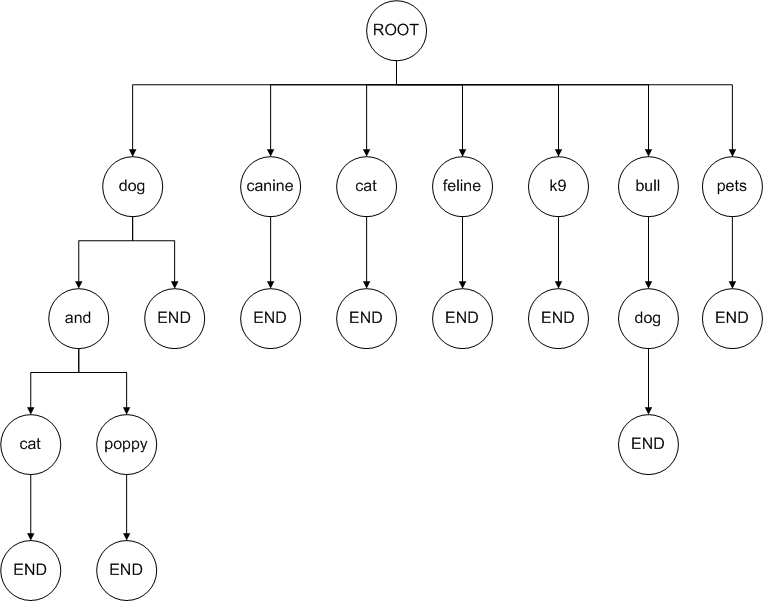

• Trie Tree (from Synonym Terms):
