LexBuild

Colors: GUI - look and feel

  • The design of LexBuild system allows a very consistent color system. All colors are defined in gui.colors file. The following table shows the name and definitions. More basic colors are also defined.

    NameColorValueNotes
    BODY_BG FFFFFFBackground color of html page
    TITLE 39A4A4Title color
    SUP_TITLE 074040Super title color
    SUB_TITLE 074040Sub title color
    BANNER 005154Banner background color
    BANNER_CHAR FFFFFFBanner character color
    ERROR 770000Error message color
    WARNING EEBBBBWarning message color
    MSG 074040Message color
    LINK_BG DDFCE3Link background color
    TEXT_BG EEEEEEText background color
    HIGH_LIGHT FED292High light color
    LOW_LIGHT D2BE95Low light color
    MENU_LT C6FFE6Menu light color
    MENU_DK 85CDB6Menu dark color

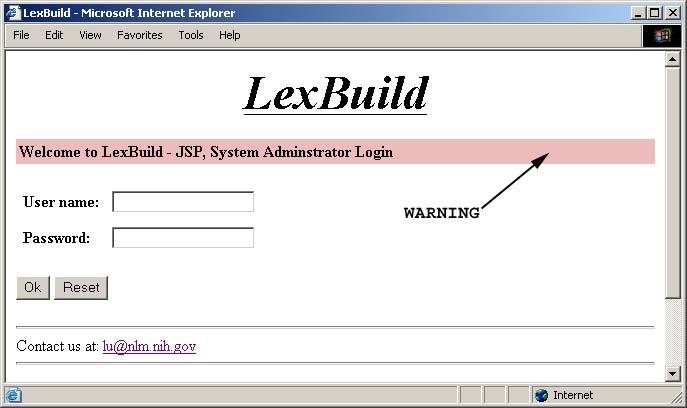

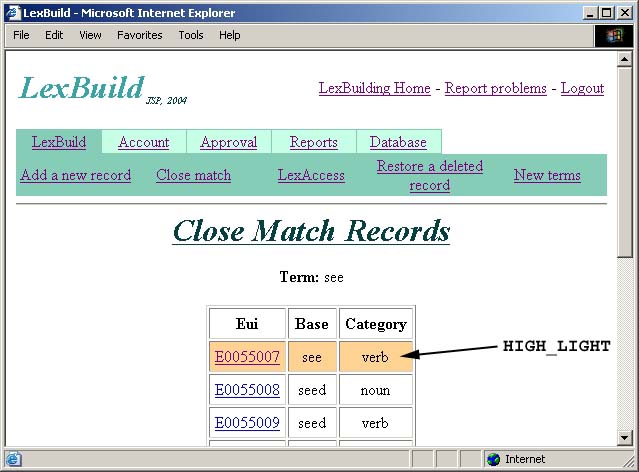

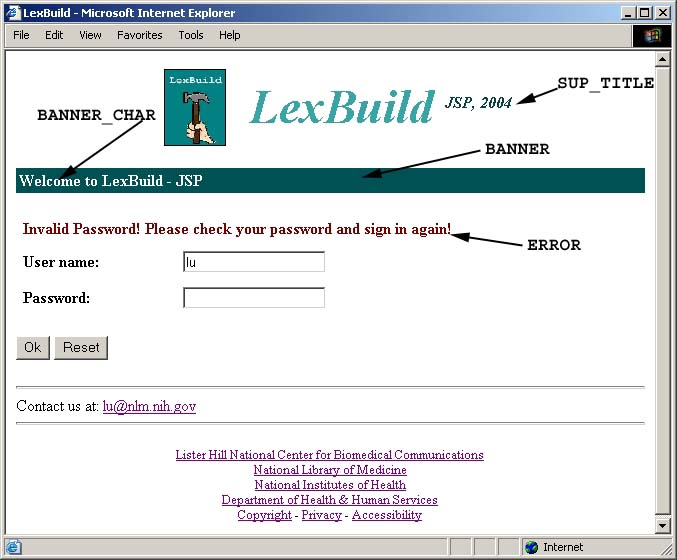

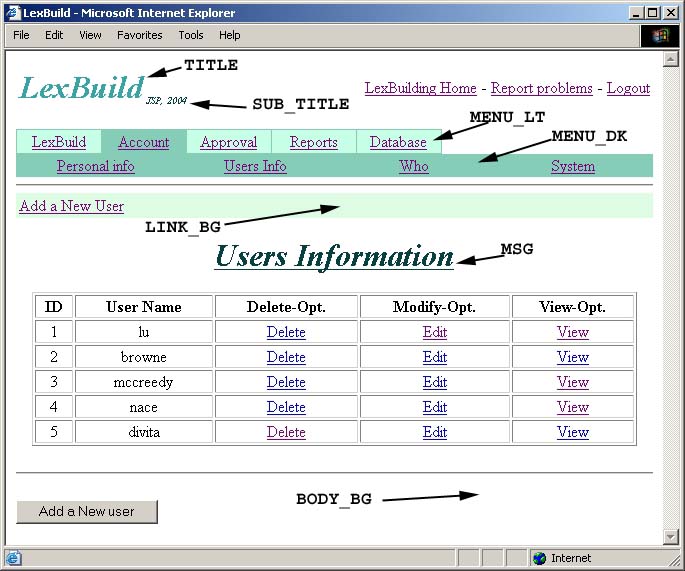

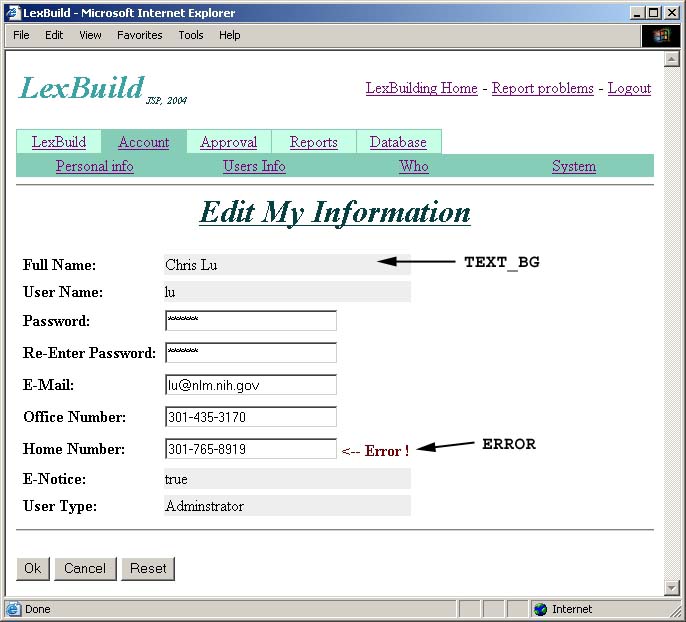

Pictures shown below illustrates above color in LexBuild application:
